Productized platform
VOC-SEP®

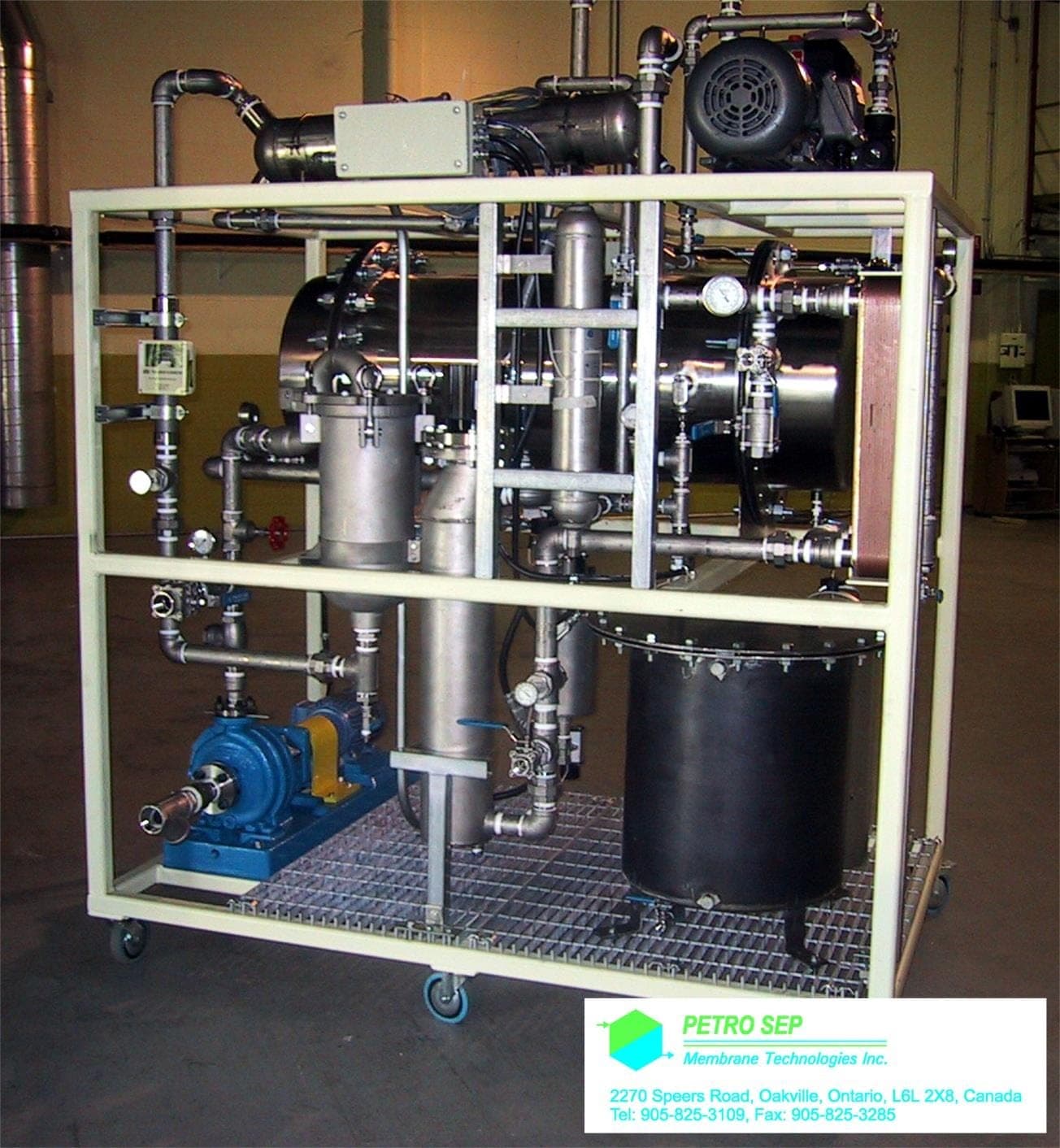

VOC-SEP® turns volatile organic compounds from a permit liability into a recoverable raw material. Built on Petro Sep's pervaporation and vapor permeation membranes, the system captures solvents from process water and exhaust streams at >98%, returning them to your line as virgin-equivalent. Most installations pay back inside two years on solvent purchase and disposal savings alone.
VOC-SEP® delivers
Predictable performance, every install.
Productized does not mean compromised. VOC-SEP® hits the same numbers across every commissioning, because the platform was tuned to the applications that asked for it most.
- VOC capture rate
- >98%
- 100% of separated components recovered, per Petro Sep VOC-SEP® specification. Validated across IPA, ethanol, methanol, MEK, acetone, ethyl acetate, and several proprietary solvents.
- Recovered solvent purity
- >99.5 wt%
- Direct reuse in production for most operators. No re-distillation step needed.
- Emissions
- Zero air or water emissions
- Closed-loop architecture: nothing vents to atmosphere, nothing discharges to drain.
- Payback period (typical)
- 12 to 24 months
- Solvent purchase and hazardous-waste disposal savings combined.
Performance envelope
Sizes, materials, options.
Capacity scales by adding skids in parallel. Materials and code stamps configure to your jurisdiction. We document every option in the proposal package.
- Feed VOC concentration range
- 0.2% to 10%in feed
- Capacity range
- 1 to 100m³/day solvent feed
- Flux rate
- Up to 1kg/m²·h
- Modular scaling
- Stack modules to match load
- Operating temperature
- Up to 70°C
- Max operating pressure
- 200kPa
- Compatible solvents
- EtOH, IPA, MeOH, n-PrOH, BuOH, Acetone, MEK, MIBK, EtOAc, MeCN, plus proprietary
- Specific energy
- 100 to 200kWh/m³ feed
- Membrane type
- Dense, non-porous, hydrophobic
- Materials of construction
- Sanitary 316L; GMP-compatible options
- Membrane life (typical)
- 2 to 5years
Built on
Pervaporation.
Selective separation of liquid mixtures, including the azeotropes that distillation cannot break.
VOC-SEP® is the productized application of our pervaporation and vapor permeation technologies. The technology pages are where engineers go for the working principle, full specs, and how each process compares to alternatives.
Why this matters to a buyer
- The technology is proven in 100+ commissioned projects, not a science experiment.
- The system is the same platform we already ship at scale; no first-of-a-kind risk.
- If a custom configuration is needed beyond the standard envelope, we engineer it on the same platform.
Where it's deployed
Industries that buy this system.
VOC-SEP® is in service across multiple sectors. Click through to see the specific applications and outcomes by industry.
Industrial Manufacturing & Environmental
Process equipment, packaged plants, and patented recovery for manufacturing, water reuse, and emissions control.
Learn more
Pharmaceuticals & Life Sciences
Sanitary fabrication and patented solvent recovery for GMP and life-sciences environments.
Learn more
Oil, Gas & Energy
Process equipment, packaged plants, and patented separation for upstream, midstream, downstream, and energy.
Learn more
Ready to size
VOC-SEP® for your feed?
Send us your fluid composition and a target capacity. We will send back a sized configuration, expected performance, and an indicative budget promptly.
